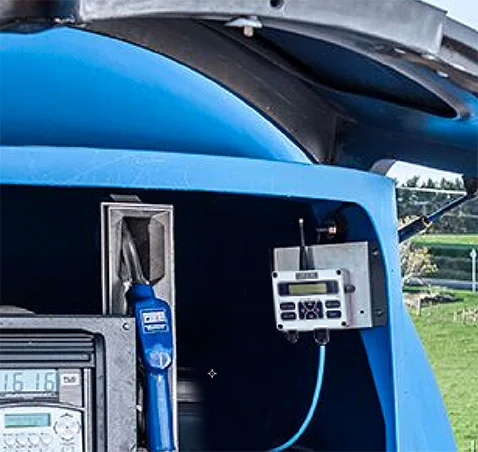

Tank and Silo Monitoring
The system consists of a cellular base station connected to a cabled sensor.
Typical input sensors are:
Load cells
Ultrasonic or radar level sensors
Pressure or differential pressure
Sensors using a 4-20mA input.
Two low and two high level set-points can be set, and alerts sent to any person either by email, text message or phone-call.
Data from the tanks or silos is displayed on the customers own web page where automatic reports will be received from the tank at up to 15-minute intervals.
Products
Differential Presssure Tank Monitoring Unit
[AG00041]
The differential pressure sensor detects tank content volume and sends an alert when volume drops below a set level.
Sensor included

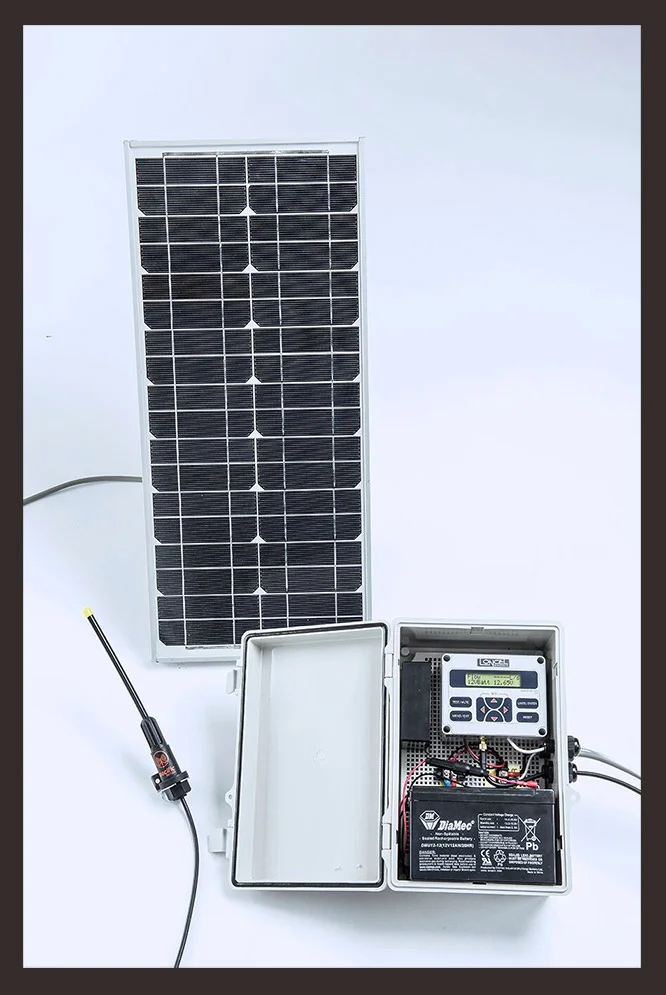

Custom Monitoring Unit
AG000101
Connects to any 4-20mA sensor (sold separately)
APPLICATION EXAMPLE:
A load cell under a flour silo monitors tonnage and sends an alert when refilling is required
